cnc fibre laser
product overview
Precision laser cutting starts with understanding exactly what the finished component needs to achieve. At Grantham Fabrications, our laser cutting service combines modern CNC technology with practical engineering experience, allowing us to produce accurate components efficiently from prototype quantities through to larger production runs.

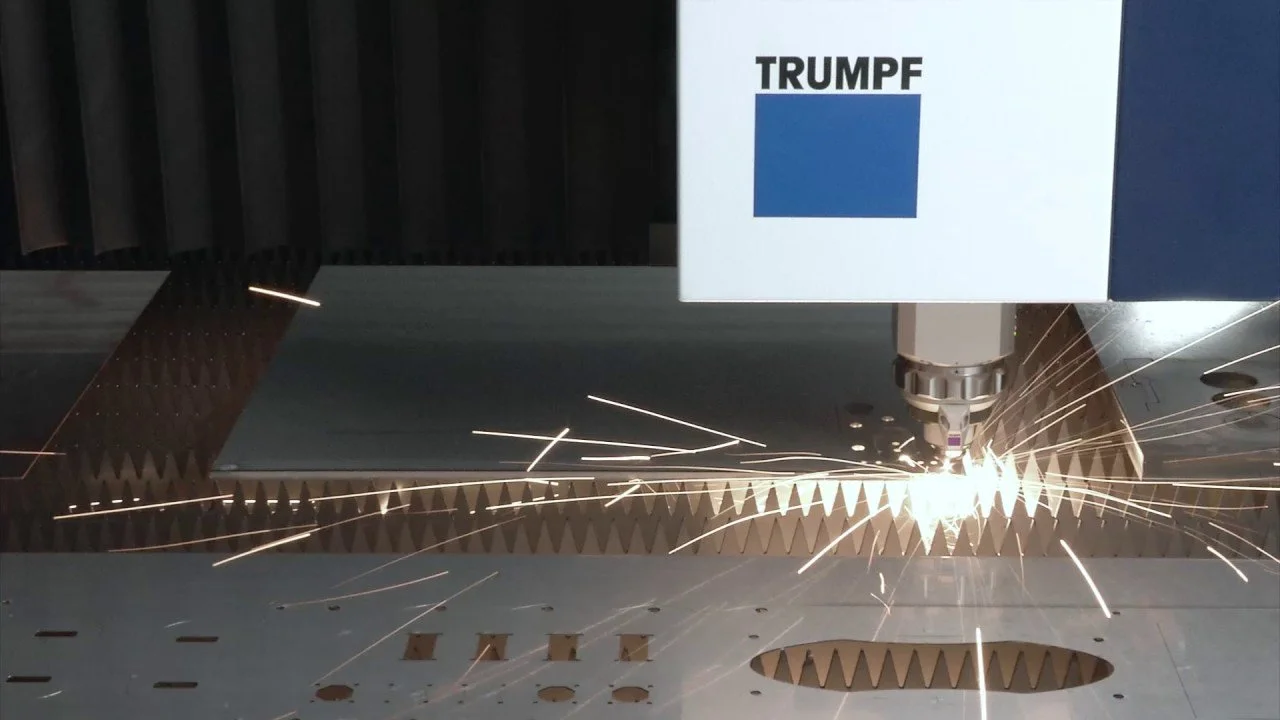

Using our TRUMPF TruLaser 5030 fibre laser, we can cut sheet material up to 3,000 × 1,500 mm, producing clean, accurate profiles across a wide range of applications. From simple brackets and plates to complex components with intricate profiles, holes and cut-outs, the process provides excellent repeatability and consistency from part to part.
Every job begins with the correct material, thickness and CAD data being established before the parts are programmed and efficiently nested onto the sheet. This helps us make the best possible use of the available material, reducing unnecessary waste while maintaining an efficient production process.
Our laser cutting capability can be used as a standalone service or as part of a complete manufacturing package. Once cut, components can move directly into our other in-house processes, including press brake forming, fabrication, welding and assembly, allowing multiple stages of a project to be managed under one roof.
Whether you require a one-off prototype, replacement component or a larger batch of production parts, our combination of TRUMPF laser technology, CAD capability and experienced engineering team allows us to produce components accurately and consistently, with the wider manufacturing requirements of the project considered from the outset.
| Capability | Specification / Status |
|---|---|
| Laser Cutting Machine | TRUMPF TruLaser 5030 |
| Laser Power | 8,000 W |
| Working Area | 3,000 × 1,500 mm |
| Mild Steel | ✔ Up to 25 mm* |
| Stainless Steel | ✔ Up to 20 mm* |
| Aluminium | ✔ Up to 12 mm* |
| Maximum Sheet Weight | Up to 900 kg |
| Maximum Simultaneous Speed | Up to 300 m/min |
| Profile Cutting | ✔ Complex profiles, holes & cut-outs |
| Thin & Thick Sheet Processing | ✔ High-speed processing across a wide range of thicknesses |
| Production | ✔ Prototypes, one-offs & production runs |
| Material Optimisation | ✔ Automated nesting for efficient sheet utilisation |
| Downstream Manufacturing | ✔ Bending, fabrication, welding & assembly |
*Maximum material thickness is dependent on material grade, machine configuration, cutting conditions and material quality. Please contact us to confirm suitability for your specific application.
application
Machine Components — brackets, mounting plates, gussets, covers and bespoke machine parts
Structural Components — connection plates, cleats, base plates and reinforcing components
Architectural Metalwork — decorative panels, feature screens, signage and bespoke profiles
Automotive & Motorsport — brackets, mounting components, chassis parts, panels and fabricated components
General Fabrication — plates, brackets, flanges, tabs, supports and bespoke fabricated parts
Industrial Equipment — guards, access panels, machine frames and component parts
Replacement Parts — obsolete, damaged or unavailable components reproduced from drawings or existing parts
Prototypes & Development — one-off components and prototypes for testing before production
Production Components — repeat batches where consistency and dimensional accuracy are important
Bespoke Projects — customer-specific components where standard off-the-shelf parts aren't suitable
One project. One manufacturing partner.
By combining our design, cutting, forming, machining, fabrication and finishing capabilities, we can manage projects from the initial concept through to the completed component or assembly — keeping more of the manufacturing process under one roof.
